EXPERTFOLD 106 | 145 | 165 | 215

Specifications

Processed materials (1)
Heavy solid board max 800 g/m2 0.49 in
Corrugated flute type A, B, C, E, F, N, EE
Capability
Speed 20 to 250 m/min 66 to 820 ft/min

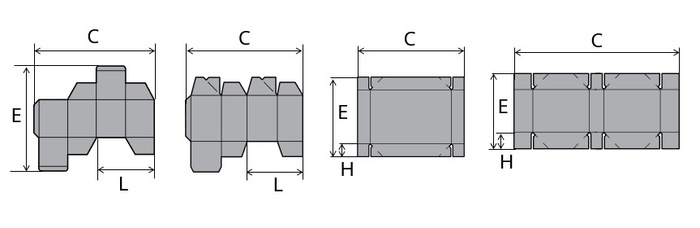

Box sizes
Straight line "C" 116 to 2300 mm 11.6 to 90.6 in
Straight line "E" 60 to 1350 mm 2.4 to 53.15 in
Straight line "L" 55 to 835 mm 2.2 to 32.9 in
Crash-lock bottom "C" 296 to 2300 mm 11.6 to 90.6 in
Crash-lock bottom "L" 145 to 835 mm 5.7 to 53.2 in
4-corner "C" 225 to 1600 mm 8.9 to 63 in
4-corner "E" 60 to 1350 mm 2.4 to 53.2 in
4-corner "H" 145 to 1600 mm 5.7 to 63 in
6-corner "C" 440 to 1700 mm 17.3 to 67 in
6-corner "E" 150 to 800 mm 5.9 to 31.5 in
6-corner "H" 50 to 150 mm 2 to 5.9 in

(1) Depending on material properties
